Complexity Requires Creativity
Moldular solutions for every application. Servomold components replace conventional drives with precise servo-electric systems – as standard solutions or project-specific custom-made products. Serving the Medical & Pharmaceutical, Packaging & Consumer Goods, Electrical & Automotive and Fluid Control.
Unscrewing – Servomold Unscrewing Device Servomold SDD Servomold SDG
Linear Actuators – Servomold SLA Servomold PGT
Core Pulling Units – Servomold SLY
Index Plate Turning – Servomold SID
Controllers – Servomold SMC

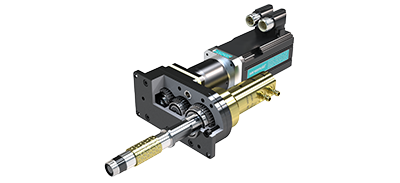

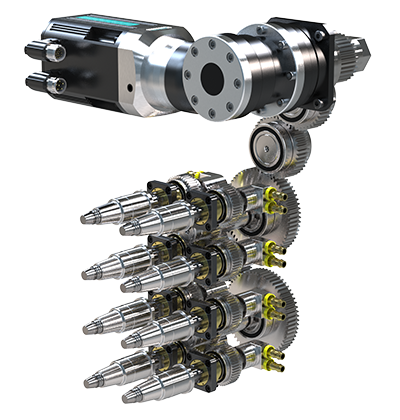

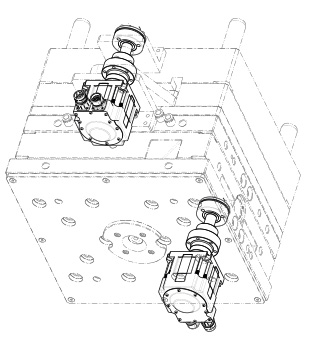

Servomold® Unscrewing Devices
• Wide range of cavities (from 1 to 128) can be controlled
• Simple sizing of the motors required provided with torque calculation for the drivetrain
• Warranty with recommended maintenance guidelines
• Precision, speed and torque with Industry leading controller

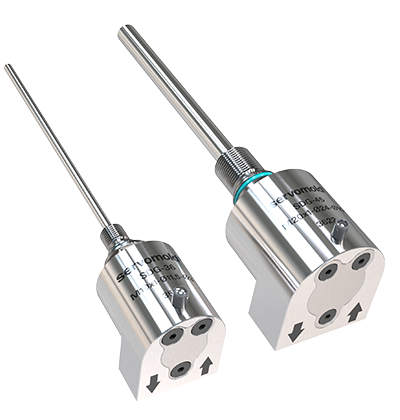

The Servomold SDG – Rotary Cooling with Mechanical Seal
- Fully integrated cooling solution
- Small and compact design
- Temperatures up to 90 °C – pressure up to 5 bar
- Variable cooling pipe diameters from 2 to 10 mm possible
- Different connection options available

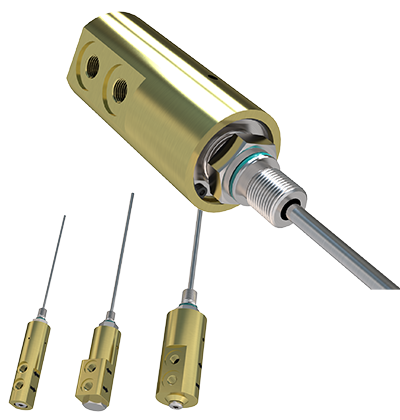

The Servomold SDD – Rotary Cooling with Mechanical Seal
- Adaptable cooling solution
- Temperatures up to 90 °C – Pressure up to 4 bar
- Cooling pipe Ø3, Ø4 and Ø6 mm
- Different connection options available
Linear Actuators

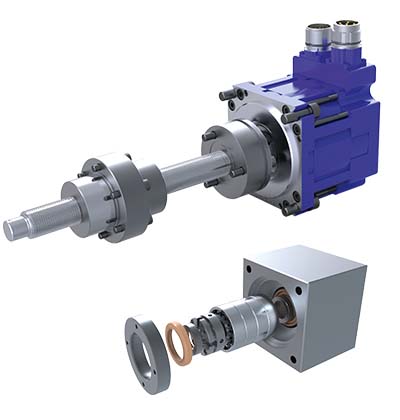

The Servomold PGT – Intergated Linear Action
- Spindle length from 250 mm to 3000 mm
- Position encoder system resolver or absolute encoder optional with motor brake
- Particularly low-noise and high travel speeds
- Large number of contact points allows compact design and long lifetime
- High load ratings, high efficiency and high positioning accuracy

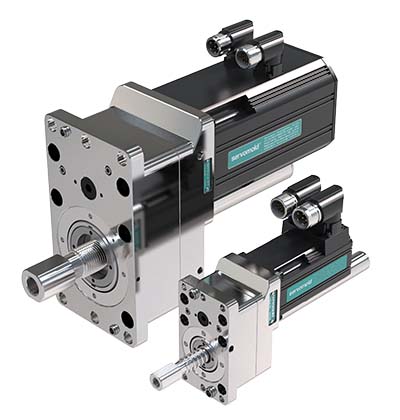

The Servomold SLA -Linear Actuators
- 100% position and high repeat accuracy
- Continuously high forces and speeds, independent of the process state
- Movement profiles can be freely and individually defined and called up
- Clean, oil-free and therefore optimal cleanroom suitability
- Easy maintenance due to replaceable ball and roller screws
- Different power classes from 4kN to 60kN
- Compact and robust housing construction made of stainless steel
Core Pulling Devices
The Servomold SLY -Core Pulling Devices
- Compact, clean, and highly dynamic alternative to hydraulic cylinders – especially for slide movements and clean room environments
- Continuously high forces and speeds possible up to 12 kN force and 600mm / sec velocity (150 mm in 0.5 sec – including acceleration and deceleration)
- Attached, replaceable high-performance servo motor
- Easy maintenance access to spindle nut
- µ precise assembly and movements
Precise, highly-efficient, low-maintenance and clean.
Indexing Plate Turners

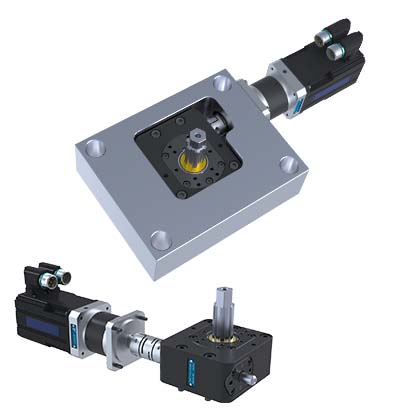

Servomold SID – Integrated Drive for Rotatable Indexing Plates
Compact rotating unit, completely integrated in the mold with attached servomotor on top of the tool
- Available for index plates up to 150 kg
- Tool temperatures up to 150° C possible
- Encoder system resolver or absolute encoder
- Servomotor with safety brake
Servo Controllers

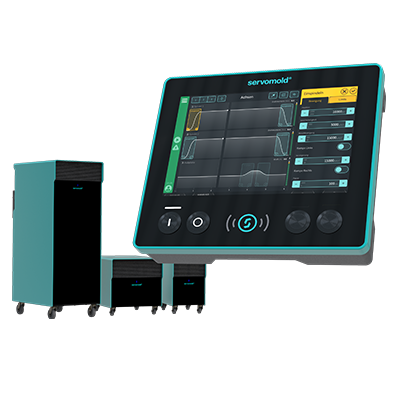

Servomold SMC – Servomold Controllers
Process control like never before with the new generation servo control system.
- Clarity and clear visualization of ongoing processes
- Flexibility and adaptability
- Easy to learn due to simplification of complex relations
More Efficiency… More Flexability… More Control

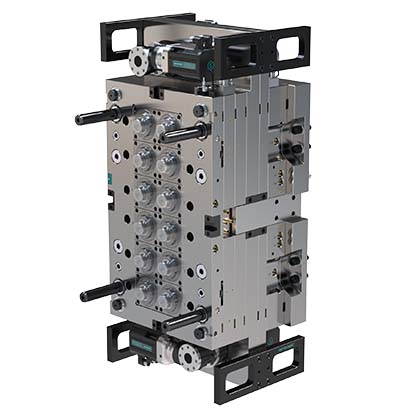

Custom Servomold Devices
Servomold SMC – Servomold Controllers
For all inquires please contact DME at:
[email protected]
Toll-free U.S. – 800-626-6653
Toll-free Canada – 800-387-6600
Worldwide – 248-398-6000
[email protected]
