Linear Actuators
-
PGT Integrated Linear Action
-
SLA – Compact Linear Actuators with Exchangable Spindle & High-Performance Servo Motor
Industries Served
Medical Technology & Pharmaceuticals
Packaging & Consumer Goods
Electrical Engineering & Automotive
Fluid Control
Complexity Requires Creativity
Moldular solutions for every application. Servomold components replace conventional drives with precise servo-electric systems – as standard solutions or project-specific custom-made products. Serving the Medical & Pharmaceutical, Packaging & Consumer Goods, Electrical & Automotive and Fluid Control.
Linear Actuators – Servomold SLA Servomold PGT
Unscrewing – Servomold Unscrewing Device Servomold SDD Servomold SDG
Core Pulling Units – Servomold SLY
Index Plate Turning – Servomold SID
Controllers – Servomold SMC

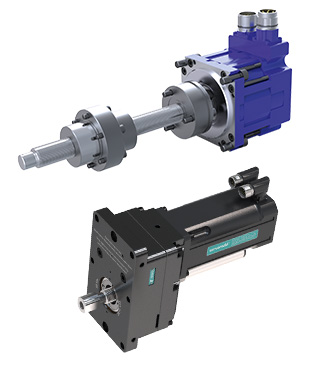

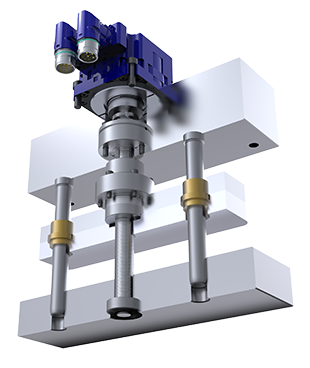

PGT Integrated Linear Actuators
The Powerful Alternative to Hydraulic Cylinders
Compact linear actuator with roller screw and space-saving Servomotor
- Spindle length from 250 mm to 3000 mm
- Position encoder system resolver or absolute encoder optional with motor brake
- Particularly low-noise and high travel speeds
- Large number of contact points allows compact design and long lifetime
- High load ratings, high efficiency, and high positioning accuracy

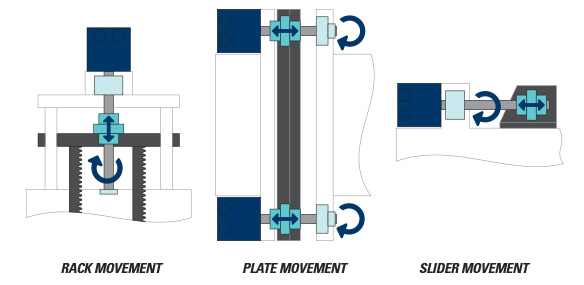

Movement
Variants
SLA Linear Actuators
Compact Linear Actuators with Exchangeable Spindle and High-Performance Servo Motor
- 100% position and high repeat accuracy
- Continuously high forces and speeds, independent of the process state
- Movement profiles can be freely and individually defined and called up
- Clean, oil-free and therefore optimal cleanroom suitability
- Easy maintenance due to replaceable ball and roller screws

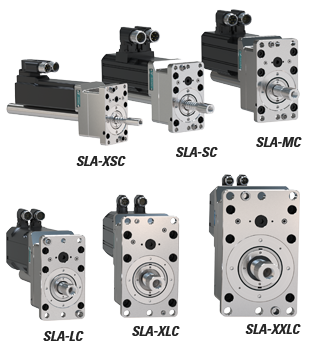

- Different power classes from 4kN to 60kN
- Compact and robust housing construction made of stainless steel
The new SLA-Compact series redefines performance and flexibility. With an innovative concept, it not only offers higher forces, but also impresses with its reduced dimensions – ideal for applications where space and efficiency are equally important.
Optimized for injection molding tools and more –
Specially designed for use on injection molding tools, the SLA-Compact delivers outstanding results in demanding manufacturing processes. At the same time, it proves to be an excellent solution for classic automation tasks.
Individual configurations for the highest demands –
The modular design and the integration of a wide range of servo motors and variable spindle systems make it possible to tailor the system to each application. This flexibility makes it possible to precisely meet specific customer requirements – regardless of whether it involves the highest speeds or maximum force.

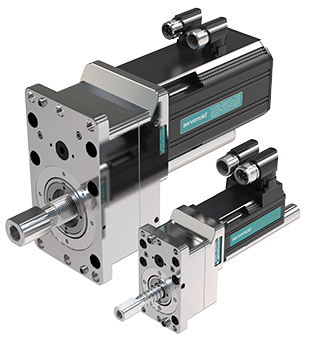

The Compact SLA
The compact servo linear actuator SLA allows movements with stroke lengths up to 1000 mm and more. The linear actuator with exchangeable ball or roller screw and high-performance servo motor is a compact, powerful, energy-efficient and clean alternative to hydraulic or pneumatic cylinders for slider, core or plate movements
